Testimonials for Ductwork Pro
We have purchase your Ductwork software and use it frequently. Very user friendly. I reccomend it!
P. Duncan, Smith Engineering
"I had
purchased your software a while ago. Man made my life much easier!!!
Thanks again its awsome!!!..." R. Mourey. Maple Shade, NJ
"...I think it is a wonderful
program, and hope to continue to do business with you..." A. Taylor,
PE, Princeton Junction, NJ
"I recently downloaded
your ductwork software
and thus far
I’m very impressed with the simplicity of use. ", R.
Brandel
Ductwork Pro Version 2.0 is here!
Some Noteworthy Features:

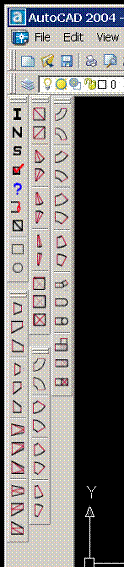

Toolbar Menus
Toolbar menus are now available for the
most commonly used fittings and features.
This makes use of the system much easier. These
fittings can be added to your drawings
with 1 click. No menu navigation
necessary.
Each tool on the toolbar has
descriptive “tool tips” that momentarily appear when the mouse pointer
is over
them. This helps to remind you what each
item will do.

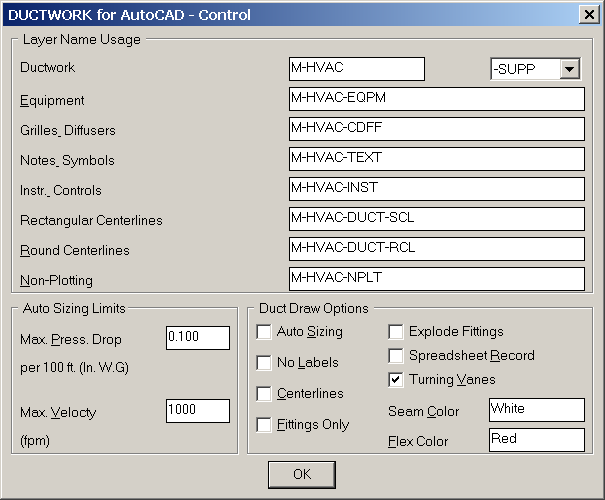

- Ductwork Options Dialog box:
The Ductwork Control dialog box
has a feature to select from a list of commonly use duct layer names.
By
default, AIA style layer names are used.
However, you can customize the layer names to adhere to your
company
standards. Also, we have added controls for turning vanes and selection
of
color for special items.

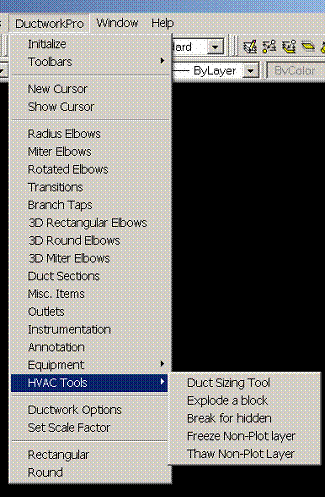

The primary menu for the system is now
the DuctworkPro pull-down menu. The menu
has been re-designed to be more useful.
Some of the menu items work to perform
a function directly, and other will invoke an icon menu to allow you to
select
a fitting.
- Control
over all color usage. In previous
versions, the color used for duct seams and other minor lines was fixed
as RED. This meant that you may had to
adjust your color to lineweight settings to plot your drawings
correctly. From now on, you may choose the
color to use for these lines. All colors
are now adjustable and you are no longer forced to adjust your plotter
settings.
- Turning
vanes for mitered 90 degree elbows. You
now have the option to show turning vanes for mitered elbows. By default, turning vanes are turned on. Turning vanes are automatically drawn to an
appropriate size depending on the scale of the drawing.
- Fan
Powered Terminal Units. In addition to the
VAV/CV terminal units, we have added fan powered terminal units. They are selected from a special menu and
dragged into place like any other fitting. The
duct cursor is automatically placed at the discharge opening.
- Compiled
Lisp Programs. All versions of DuctworkPro
are now shipped as compiled lisp programs. This
makes the programs load and run much faster and occupy less disk space.
- Various
bug fixes and minor improvements.
- Revised
and improved User Guide and Menu Programmers Guide
